5 Rotomolding Design Mistakes to Avoid When Developing a New Cooler

Most rotomolding failures are designed in long before the first part comes out of the mold. Here is what to fix while it is still cheap to fix.

Rotational molding gives outdoor brands the ability to produce large, seamless, double-walled cooler bodies with excellent impact resistance and thermal performance. But the process works nothing like injection molding—and designs that look flawless on a CAD screen can fail badly on the first rotomolding trial.

At Boright Industries, we work with brands developing custom rotomolded coolers, tool boxes, and insulated containers. The same design issues come up again and again. The good news: all of them are far cheaper to fix before the mold is built.

1. Designing Undercuts That Make Demolding Difficult

Undercuts are among the most common—and most expensive—design mistakes in rotational molding.

A rotomolded cooler mold is typically split into two main sections: an outer cavity and an inner core. These come together to form the hollow, double-walled cooler body. When the mold opens, the part must release cleanly from both sections.

Rotomolding relies on gravity and slow, multi-axis rotation to distribute resin. Any feature that creates a mechanical lock between the part and the mold will make demolding extremely difficult. Unlike injection molding, there is no high pressure and no sliding core to help the part release.

What goes wrong: parts that stick in the mold, drag marks on visible surfaces, warping during forced removal, and in severe cases, damage to the mold itself.

If an undercut is absolutely necessary, a sliding mold mechanism may be required. That adds significant tooling cost, introduces mechanical failure points, and increases maintenance demands over the mold’s lifecycle.

Better approach: redesign features to be draft-friendly. Place recessed features along the parting line so the mold halves open cleanly. If the undercut cannot be avoided, add the feature through a secondary process—CNC trimming or post-mold assembly—rather than molding it in.

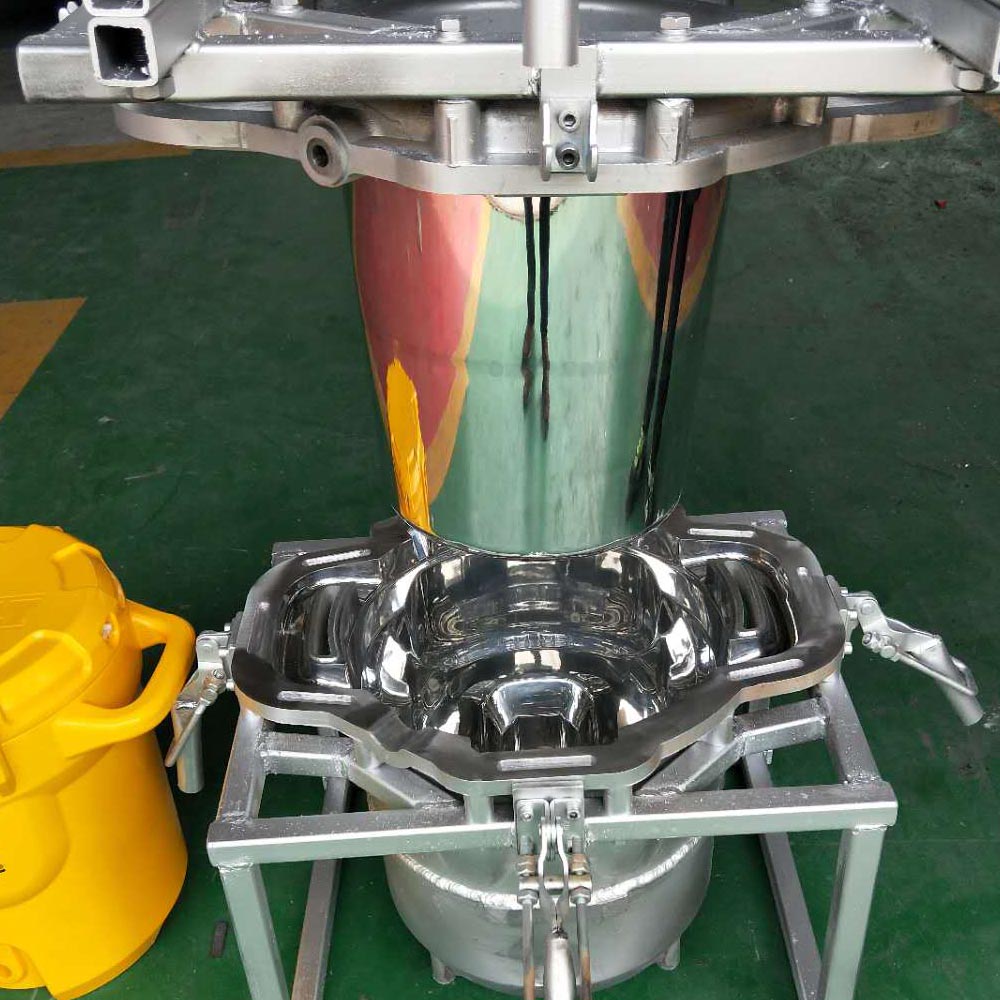

Rotational molds for cooler bodies are split into an outer cavity and an inner core. Undercuts prevent clean release and can damage both the part and the mold.

2. Making the Bottom Wider Than the Top

A wide, flat bottom might seem like a natural choice for cooler stability. In rotomolding, it creates real problems.

The cooler body should generally be designed with the top wider than the bottom, with a slight taper or draft. This helps the part release from the mold and improves structural stability.

During cooling, plastic shrinks as it solidifies. On large, flat surfaces—especially the bottom of a cooler—that shrinkage has nowhere to go. The result is warping, bowing, and dimensional inconsistency. The cooler does not sit flat, rocks on uneven surfaces, or fails to align with the lid.

Deep-bottom parts add another challenge. For parts deeper than about 30 cm, the bottom wall tends to come out thinner than the side walls, because heat transfer to the mold surface at the deepest point is less efficient. A wide flat bottom amplifies this effect.

Better approach: incorporate a slight crown or compound curvature into the bottom surface. This adds structural stiffness and gives the shrinking material a geometry to conform to. Add reinforcing ribs or kiss-offs—points where the inner and outer walls meet—to stiffen large spans without adding weight.

3. Ignoring Wall Thickness Consistency and the Double-Wall Gap

One of rotomolding’s advantages is the ability to produce parts with uniform wall thickness and no seams or weld lines. Achieving that uniformity, however, requires deliberate design.

Wall thickness in rotomolding is governed by material charge weight and heating time—not injection pressure. Deeply cored areas, heat-shielded regions, and complex geometry accumulate less material and end up with thin walls that fail under impact or do not insulate properly.

Abrupt transitions—sharp steps, sudden thickness changes, tight internal corners—disrupt resin flow during rotation and create thin spots or voids.

Plastic Wall Thickness

3 – 8 mm

Double-Wall Gap / Insulation Cavity

≥ 30 mm

For a rotomolded cooler, both dimensions matter. The plastic wall carries the structure. The gap between the inner and outer walls is what delivers meaningful thermal performance. If you want a cooler that actually holds ice, the double-wall gap needs to be designed in from the start—not squeezed in later.

Better approach: design for nominally uniform walls. Use gradual, smooth transitions between sections. Where reinforcement is needed, use ribs or contours rather than localized thickening. Work with your molder to model heat transfer and validate wall distribution during prototyping.

4. Adding Cosmetic Features That Increase Tooling Complexity

Every molded-in feature has a cost—not just in tooling, but in production reliability and part quality.

Fine details, sharp text, micro-textures, and narrow recesses are difficult to reproduce in rotomolding. The polymer powder must melt and adhere uniformly to the mold surface while rotating. Features that are too small or too deep may not receive adequate material coverage, resulting in incomplete formation or weak areas.

Underestimating how material moves inside the mold is one of the most common causes of cosmetic defects—weak spots, unfilled areas, and surface imperfections that need secondary processing to fix.

A specific example: injection-molded logo slider systems work well on injection-molded products, but create real quality issues on rotomolded cooler lids. The slider creates gaps where molten PE seeps in during heating, leaving unsightly burrs around the logo. Slider logos are also limited to 2–3 mm of projection depth—while a fully molded-in logo can achieve 15–20 mm of 3D relief for a far more premium appearance.

Better approach: design logos and branding elements as integral mold features rather than add-on sliders. Use generous radii and smooth transitions on decorative elements. Where fine detail is essential, evaluate whether post-mold finishing—CNC routing, robotic trimming, or applied graphics—can achieve the desired result more cost-effectively.

5. Designing the Product Without Considering Hardware Assembly

Latches, hinges, handles, drain plugs, tie-down points, and wheel assemblies do not design themselves. Each hardware component requires careful consideration of how it mounts to the rotomolded shell.

Two approaches are common: molded-in inserts and post-mold mechanical fastening. Both have trade-offs.

  • Molded-in inserts must withstand the rotomolding thermal cycle—approximately 190°C for polyethylene—which restricts material choices to brass, aluminum, and stainless steel. They must be precisely positioned before the polymer powder is added, and the surrounding geometry must allow molten plastic to fully encapsulate the insert.
  • Post-mold assembly offers more flexibility but requires adequate mounting surfaces and reinforcement in the molded part. Hardware attachment points belong in thicker, reinforced areas of the shell—not on thin, unsupported wall sections.

There is also a legal and commercial issue many brands overlook: most cooler latches are patented. Do not copy a competitor’s latch design. Before finalizing hardware, check patent status, choose a licensed design, or develop your own latch system. Handling this early avoids costly redesigns and legal risk later.

Better approach: design hardware mounting features into the initial CAD model. Consider insert placement, fastening methods, and assembly sequence from the beginning. For load-bearing attachments like hinges and wheels, integrate reinforcement ribs or bosses in the molded shell.

The Common Thread: Design for Manufacturing, Not Just for Appearance

Every mistake on this list comes from the same root cause—treating rotomolding like injection molding, or designing for appearance without designing for the process.

All of these issues are preventable. In rotomolding, a large share of manufacturing problems are designed in during the concept phase. A product may look excellent in a CAD rendering or a 3D-printed prototype, yet still require significant engineering changes to achieve reliable rotomolding and efficient demolding.

This is why we always recommend bringing your manufacturing partner into the design conversation early—before the mold is built.

Planning a new rotomolded cooler for your brand?
Talk with our engineering team before your mold is built.

Bring Your Product Idea. Let’s Talk Manufacturing.

Whether you have a finished drawing, a CAD model, a physical sample, or simply an idea that needs engineering support, we can help you evaluate it for rotational molding. If you need help with the design itself—inner dimensions, latch selection, wheel specifications, or 3D modeling—our engineering team supports you from the earliest concept stage.

Send Your Product Requirements →

You can see how we typically work with brands here: How to Build a Customized Rotomolded Cooler.

Meet Boright Industries at SHOT Show 2027

Boright Industries will be exhibiting at the SHOT Show 2027 Supplier Showcase Reloaded in Las Vegas. If you already have a design concept and would like to discuss it face-to-face, we would be glad to sit down with you.

Event Details

Event
SHOT Show 2027 · Supplier Showcase Reloaded
Dates
January 21–22, 2027
Booth
55620 · 5th Floor, Palazzo Ballroom
Venue
The Venetian Expo, Las Vegas
Bring
Drawings, CAD models, reference samples, or a product concept

Full exhibition details are here: Boright Industries at SHOT Show 2027 — Booth 55620.

Frequently Asked Questions

What is the biggest rotomolding design mistake?

Undercuts that prevent clean demolding are among the most expensive mistakes. They cause sticking, surface damage, warping, and sometimes mold damage. Designing with proper draft angles and avoiding mechanical locks is essential.

How thick should a rotomolded cooler wall be?

Plastic wall thickness is typically 3–8 mm depending on part size and performance requirements. The gap between the inner and outer walls—the insulation cavity—should be at least 30 mm for meaningful thermal performance.

Can you mold undercuts in rotational molding?

Yes, but it usually requires sliding mold mechanisms, which add tooling cost, maintenance, and potential failure points. It is often better to redesign the feature or add it through post-mold machining or assembly.

Are cooler latches patented?

Many cooler latches are patented. Brands should check patent status, choose a licensed design, or develop their own latch system before finalizing the cooler design.

When should I contact a rotomolding manufacturer?

As early as possible—ideally before the mold is built. Early engineering review can identify demolding issues, wall thickness problems, hardware integration challenges, and tooling risks before they become expensive.
